It's right for you if...
You want to build up a quiver-killing bike that crushes all sorts of terrain. You know you want to start with a high-performance carbon frameset, and plan to spec it out as a trail-ripping, short-travel trail ripper.

The tech you get

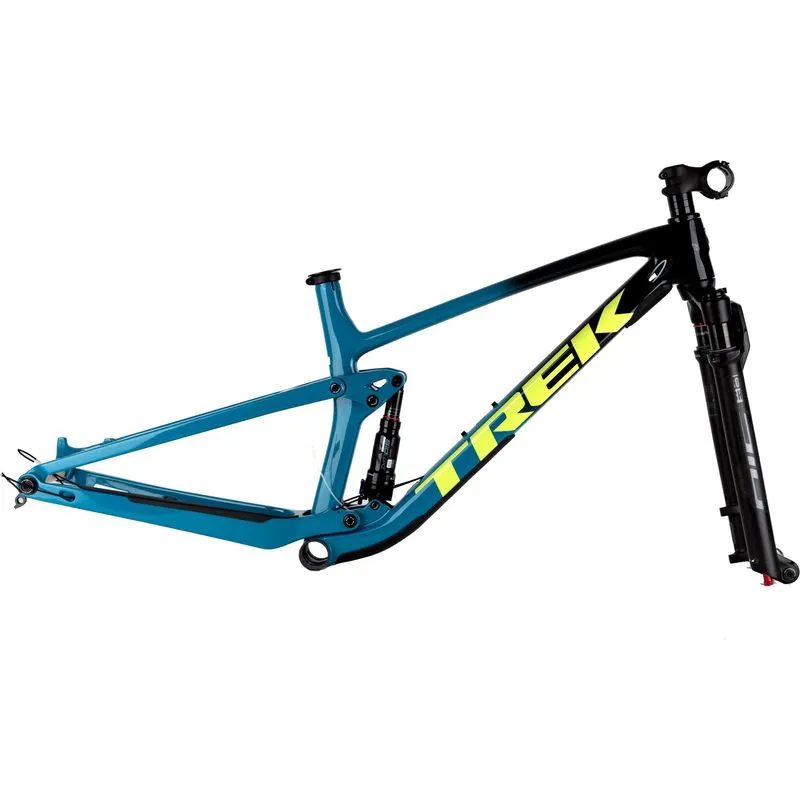

A lightweight and trail-tough full OCLV Mountain Carbon frame with Mino Link adjustable geometry, a Rockshox Rear Shock, Knock Block headset, and Control Freak internal cable routing. Designed for a 120mm fork, but can handle up to 130mm of fork travel.

The final word
Top Fuel C is light, nimble, and fun. This OCLV Mountain Carbon frameset is ideal for building up the all-around-awesome short-travel trail bike of your dreams.



Why you'll love it

1. The full carbon frame gives you a light, responsive ride
2. If you’re looking to build up a lightning-fast short-travel trail bike, this is exactly where you should start
3. Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
4. You get a Straight Shot down tube for extra stiffness in the rough and Knock Block frame defense to protect against spinning bars and fork crowns

Frameset

Frame

OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115mm travel

Max compatible fork travel

130mm

Rear suspension

Rockshox SIDLuxe Ultimate Remote Rear Shock, dual remote, tuned by Trek Suspension Lab, 190x45mm, Rebound tune: M, compression tune: M

Fork
Rockshox SID Select 29, 120mm travel, Boost 110, 44mm Offset, Remote, DebonAir spring, Charger 2 RL damper

• Wheels

  Max tire size

  29x2.40"

• Drivetrain

  Max chainring size

  1x: 36T

• Components

  Stem

  Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm

  Headset

  Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
