Level Up
An e-mountain bike that will raise your game and ignite a passion for the trail.
Where it thrives
Low-impact trails, near and far
What it's built for
Speed, efficiency, handling
Highlights
- Premium SmartForm C1 Alloy frame, removable 750Wh internal battery
- Shimano Deore 12-speed drivetrain / MT420 hydraulic disc brakes
- Bosch SmartSystem w/ Performance Line CX drive unit / 750Wh battery / Kiox display / Range: up to 175km
Specs
DETAILS
- Platform

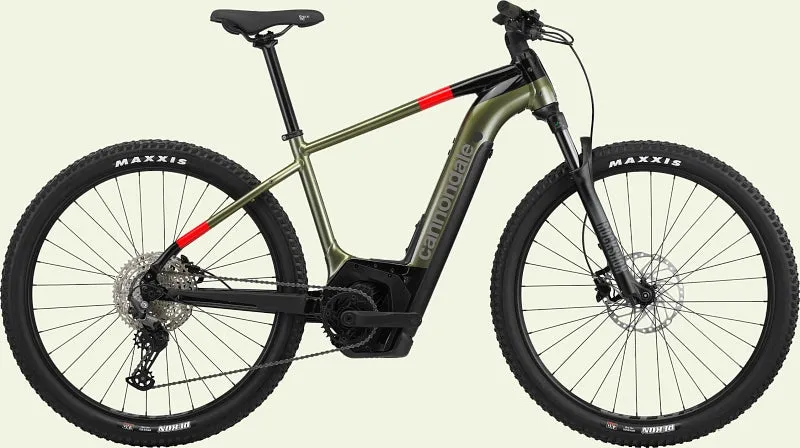

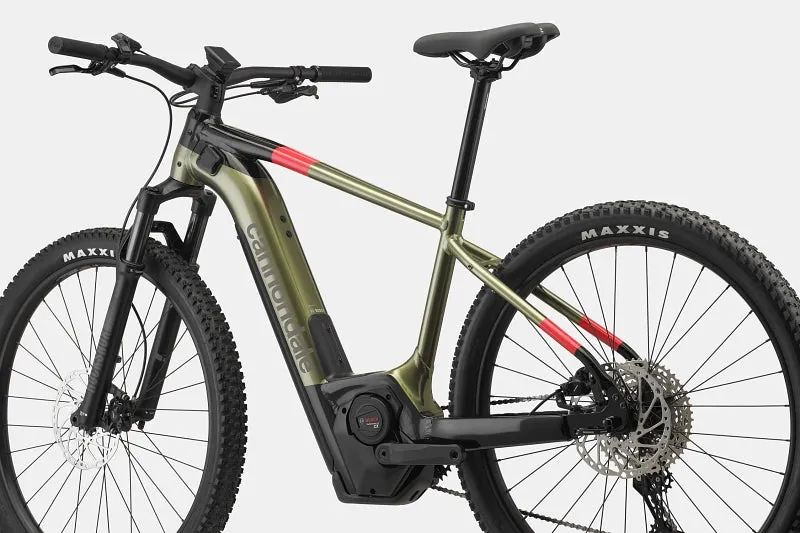

- Model NameTrail Neo 1
- Model CodeC61171M
FRAMESET

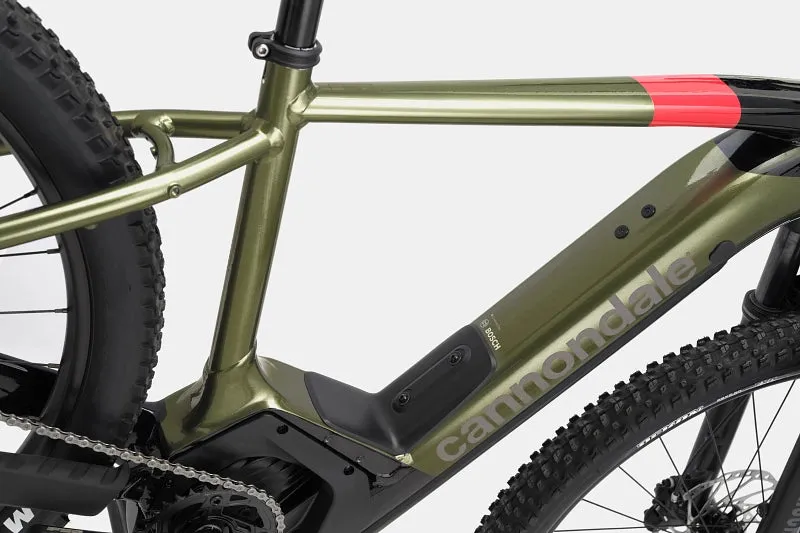

- FrameSmartForm C1 Alloy, removable 750Wh downtube battery (dual battery ready), integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts
- ForkRockShox 35 Silver, 100mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset
- HeadsetIntegrated, 1-1/8 to 1.8", sealed angular contact bearings
E-SYSTEM

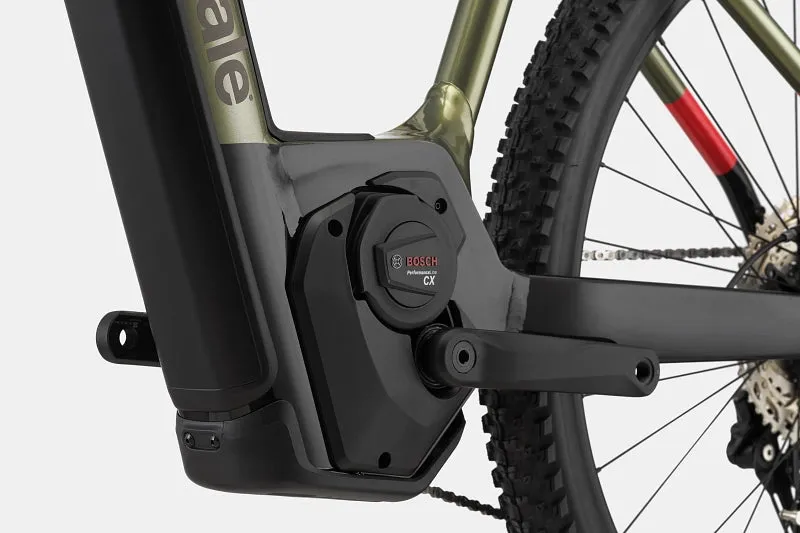

- Drive UnitBosch Performance Line CX 250W
- BatteryBosch PowerTube, 750Wh
- ChargerBosch 4A
- DisplayBosch Kiox 300 w/ LED remote
DRIVETRAIN
- Rear DerailleurShimano Deore M6100
- ShiftersShimano Deore M6100, 12-speed
- ChainShimano Deore M6100, 12-speed
- CrankFSA for Bosch G4
- Rear CogsShimano Deore M6100, 10-51, 12-speed
BRAKES
- BrakesTektro M807 4-piston hydraulic disc brakes, 203/203 TRP Rotors
- Brake LeversTektro M807 hydraulic disc
WHEELS
- RimsWTB STX i30, 32h, tubeless ready
- SpokesDT Swiss Champion 2.0
- Tire Size2.6
- Wheel Size27.5/29
- Hubs(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT510, 12x148mm thru-axle
- TiresMaxxis Rekon, 29x2.6" (M, L, XL) 27.5x2.6" (S), EXO Protection, tubeless ready
COMPONENTS

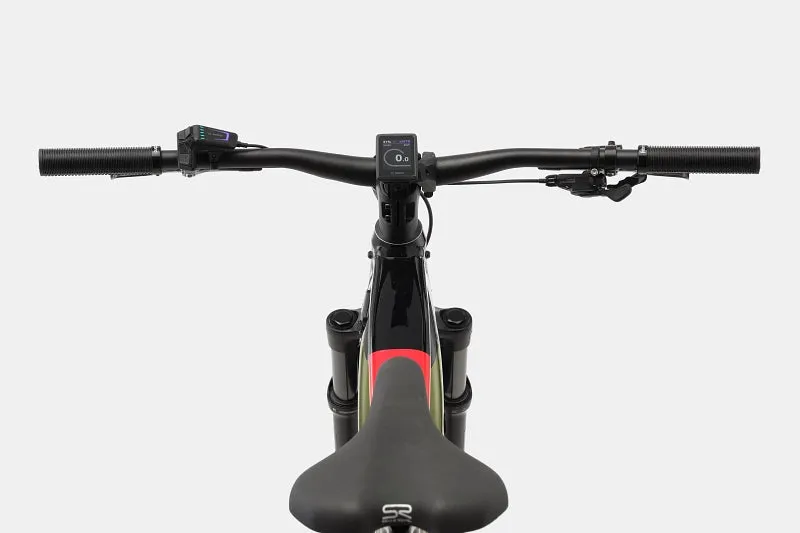

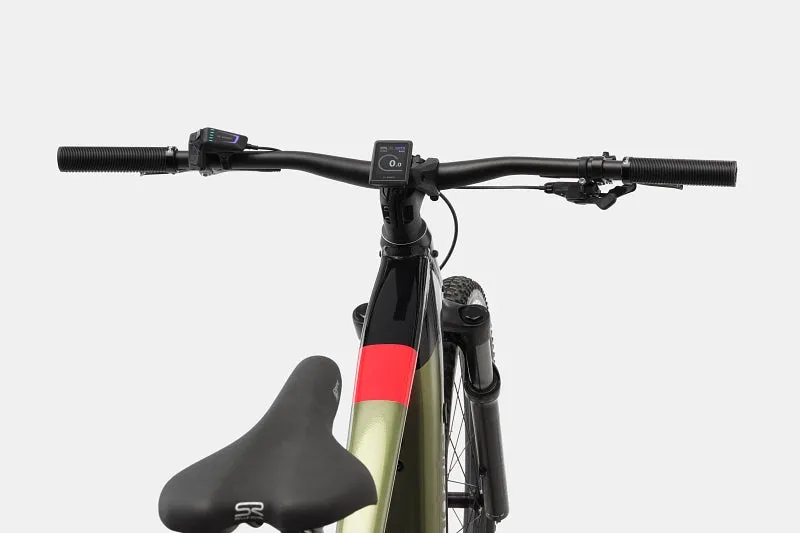

- HandlebarCannondale 2 Riser, 6061 Alloy, 35mm OD, 25mm rise, 8° sweep, 5° rise, 780mm
- StemCannondale 2, 3D Forged 6061 Alloy, 1-1/8", 35mm, 0°, internal cable guide
- GripsFabric Funguy
- SaddleFizik Freeway Fit
- SeatpostCannondale 4, 6061 Alloy, 31.6x350mm
EXTRA
- Extra 1Pre-installed light cable
